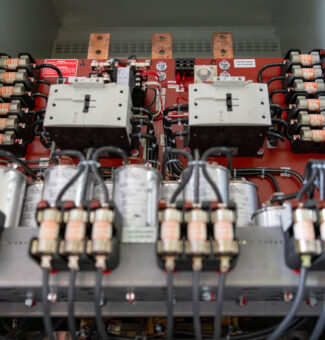

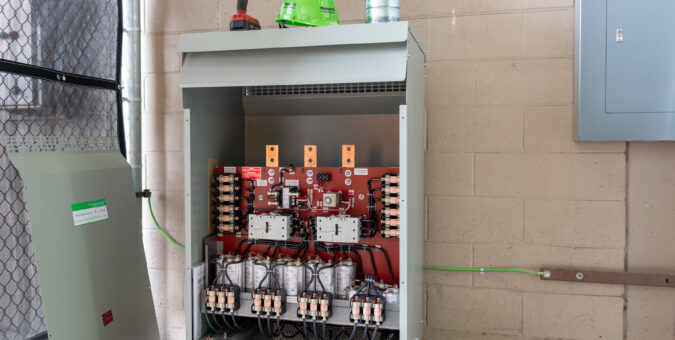

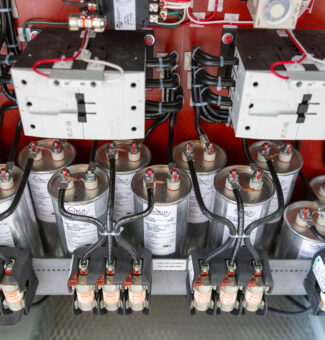

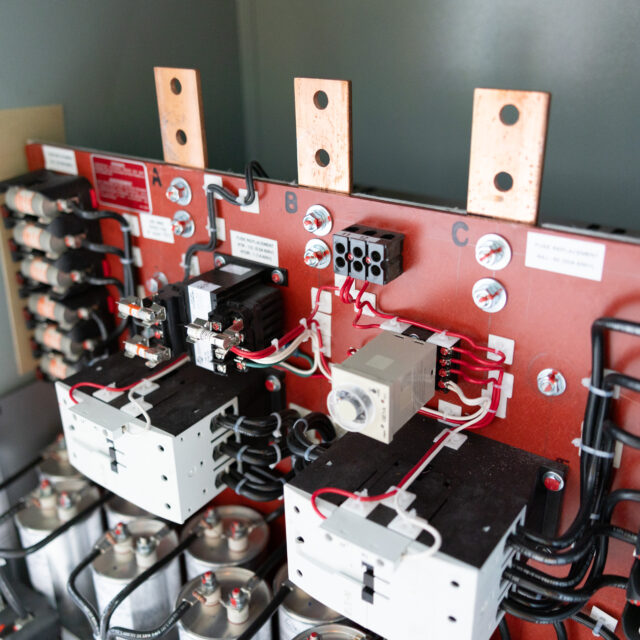

At PowerON, we take immense pride in our work, building everything for the long-term—leaving no detail overlooked. What you're seeing here is a harmonic filter installed at one of our customer's facilities. The use of harmonic filters in fast charging equipment plays a crucial role in enhancing the reliability and longevity of charging assets, saving on long-term maintenance costs and minimizing costly equipment downtime:
- Reduced thermal stress: Harmonics generate additional heat in electrical components. By filtering out harmonics, we reduce the thermal stress on the charging system. Lower operating temperatures mean longer component lifespans.
- Protection of sensitive electronics: Modern DC fast chargers contain sophisticated control systems and power electronics. These components are sensitive to power quality issues. Harmonic filters help protect these elements from damage, helping to extend their operational life.
- Minimized voltage stress: Harmonics can cause voltage spikes and distortions. By smoothing out these irregularities, harmonic filters reduce the voltage stress on insulation and semiconductors within the charging equipment, preventing premature failure.
- Improved power factor: Some harmonic filters also correct power factor. A better power factor means less reactive power flowing through the system, which reduces overall current levels. Lower currents mean less wear on conductors and connectors.
- Compliance with grid standards (within IEEE 519 limits and THESL standards): By ensuring the charging station remains compliant with utility grid standards, harmonic filters help avoid potential issues with the power company that could lead to fines or forced shutdowns for non-compliance.
- Reduced mechanical stress: Harmonics can cause mechanical vibrations in transformers and other magnetic components. Filtering these out reduces this physical stress, potentially extending the life of these parts.
- Enhanced system stability: By improving overall power quality, harmonic filters contribute to a more stable charging process. This stability can reduce stress on both the charger and the vehicle's battery management system during charging cycles.
- Prevention of nuisance tripping: Harmonics can sometimes cause false triggering of protection devices. By reducing harmonics, the likelihood of unnecessary system shutdowns is decreased, improving overall reliability and uptime.
- Mitigation of resonance issues: In some cases, harmonics can excite resonant frequencies in the electrical system. This resonance can cause severe overvoltages and equipment damage. Proper filtering helps prevent these potentially catastrophic events.
By addressing these factors, harmonic filters play a crucial role in maintaining the health of DC fast charging assets, potentially reducing maintenance needs and extending the overall operational lifespan of the equipment. This can lead to better return on investment for charging station operators and improved reliability for our customers.
